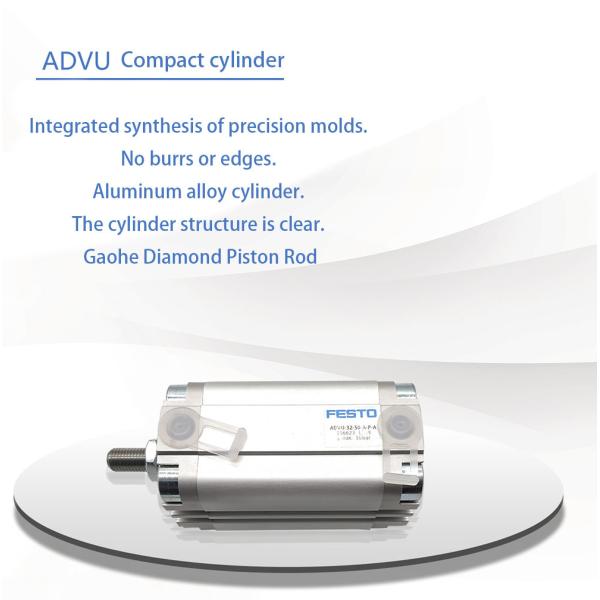

Product Description:
Structure of Festo Cylinders
Festo cylinders come in various structures to meet different industrial requirements. These structures include:
- Double piston rod
- Double piston
- Single piston rod
- Buffer
- Non-buffer
The dual piston rod cylinder is available in two forms of cylinder body fixation and piston rod fixation. This makes it adaptable to equipment of various sizes and needs.
Working Principle of Festo Cylinders
The Festo cylinder uses compressed air to enter two chambers of the cylinder, where one chamber is for intake and the other is for exhaust. This drives the piston rod to move the worktable, achieving bi-directional motion.
Application Scenarios of Festo Cylinders
Festo cylinders can be used in various industrial automation equipment, including small, medium, and large equipment. They are suitable for automated production lines, robot arms, and more.
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Piston Actuator / Air Piston Cylinder / Linear Air Cylinder |
| Operating Pressure |
0.12 MPa ... 1 MPa |
| Pneumatic Connection |
M5 |
| Ambient Temperature |
-20 °C ... 80 °C |
| Material Cylinder Barrel |
Wrought Aluminium Alloy |
| Maximum Operating Pressure |
7 Bar |
| Piston-Rod End |
Male Thread |
| Weight |
Varies |
Applications:
Structural Strength:
The Festo cylinder is constructed from top-quality materials, ensuring that it possesses superior strength and stiffness that makes it capable of withstanding heavy loads with ease.
The robust and durable design of this cylinder makes it ideal for use in applications that require components that can handle high levels of stress, ensuring you can rely on it even in high-pressure situations.
Easy Maintenance:
The cylinder liner is designed to be incredibly wear-resistant, making it easy to maintain while extending the overall lifespan of the component.
This feature is particularly important in industrial settings where machines undergo intense use, and routine maintenance is critical to ensure continuous operation.
If required, the cylinder liner can be repaired or replaced quickly, reducing downtime and further extending the product's lifespan.
Safe and Reliable:
The Festo cylinder relies on air as the working medium, which has multiple safety benefits. Primarily, it is far less likely to overheat or combust, reducing the risk of accidents significantly.
In addition, the exhaust treatment process is simple and environmentally friendly, ensuring that the product meets environmental safety standards without being a source of pollution.
This makes it ideal for use in hazardous environments, as it won't pose a direct threat to operators.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be packed in a sturdy cardboard box.
- The cylinder will be wrapped in protective foam to prevent damage during shipping.
- The box will be sealed with strong tape to ensure it stays closed during transit.
Shipping:
- We offer worldwide shipping for the piston pneumatic cylinder.
- Shipping times may vary depending on the destination.
- Customers will be notified of their tracking number once the package has been shipped.
- We offer expedited shipping options for an additional fee.
