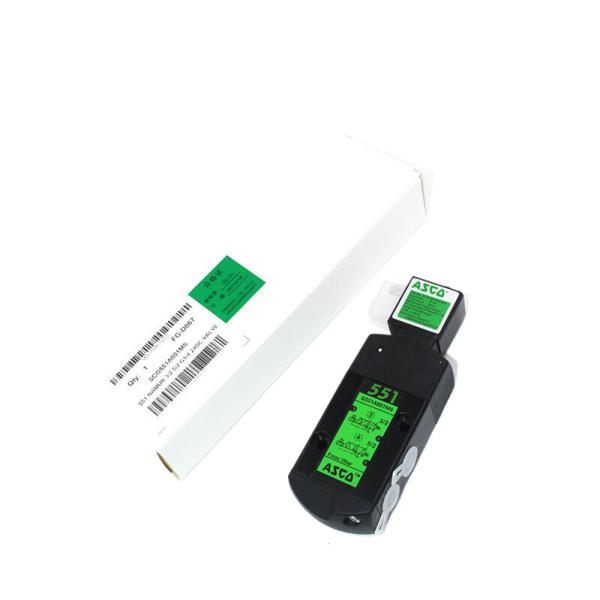

Product Description:
ASCO offers a wide range of pilot/air operated spool valves designed for different applications. Among them are the series 551, 552, and 553 that feature all connectable exhaust port. This design ensures better environmental protection, especially in areas where hazardous materials are present.
The pilot/air operated spool valves are particularly suitable for sensitive environments like clean rooms or industries such as pharmaceutical and food processing. The spool valves can effectively manage the flow of air and other media, minimizing the risk of contamination and ensuring the quality of the processes.
Moreover, the solenoid valves comply with all relevant EC Directives, ensuring their safety and conformity to European standards. The ASCO spool valves are reliable, durable, and designed to meet the most demanding industrial requirements.
| Weight | 0.8 kg |
| Media | Air, Gas |
| Manufacturer | ASCO |
| Body Material | Aluminium |
| Function | 3/2 NC |
| Port Connection | G1/4 |
| Flow Coefficient KV (l/min) | 10 |
| Flow Coefficient KV (m3/h) | 0.6 |
| Orifice Size | 6 mm |
| Operator Return | Spring |
| Working Pressure Min | 2 Bar |
| Working Pressure Max | 10 Bar |
Features:
Product Description: Monostable Spool Valves
The monostable spool valves adhere to the IEC 61508 Standard (2010 route2H version) and have obtained TÜV (551 series) as well as EXIDA (551-553 series) certification with the following integrity levels: SIL 2 for HFT = 0 / SIL 3 for HFT = 1.
- The spool valves have threaded port connections.
- The spool valves employ the "NAMUR" style interface.
- The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling double-acting and single-acting actuators.
- All the exhaust ports of the spool valve are connectable, promising better environmental protection. This feature is highly recommended for sensitive areas, such as clean rooms, and applicable in the pharmaceutical and food processing sectors.
- The valves offer environmental protection against the entry of liquids, dusts, or other foreign matter (environmentally-protected construction).
- The epoxy moulded coil is suitable for general service applications.
The solenoid valves comply with all relevant EU Directives.
Applications:
The ASCO Solenoid Valve is a solenoid spool valve that is made with a brass core tube. The flow of the valve is 1/4 = 700 L/min (ANR) 1/2 = 3000 L/min (5/2, 5/3). The seal materials used in the valve are NBR (nitrile) + PUR (polyurethane). The valve can be used with fluids such as air, inert gas, and filtered fluids. The temperature range of the valve is -25°C to +60°C.
The ASCO Solenoid Valve has a wide range of application occasions and scenarios. The valve can be used in various industries, including but not limited to the automotive industry, the food and beverage industry, the chemical industry, and the pharmaceutical industry. The valve is used to control the flow of fluids in a system. It is commonly used in pneumatic systems, hydraulic systems, and other fluid control systems.
The ASCO Solenoid Valve is ideal for use in situations where precise control of fluid flow is required. The valve is easy to install and operate, making it a popular choice for many industries. The valve is also durable and can withstand harsh environments, making it suitable for use in a wide range of scenarios.
In summary, the ASCO Solenoid Valve is a high-quality electromagnetic valve that has a wide range of application occasions and scenarios. It is easy to install and operate, durable, and can withstand harsh environments. The valve is ideal for use in situations where precise control of fluid flow is required.
Support and Services:
The ASCO Solenoid Valve product technical support and services include:
- Expert application engineering assistance
- Comprehensive product documentation and manuals
- Online technical support and troubleshooting resources
- Access to ASCO's global network of authorized distributors and service centers
- Product training and education programs
- Repair and maintenance services
- Custom engineering and design services for specific applications
Packing and Shipping:
Product Packaging:
- The ASCO Solenoid Valve product is securely packaged in a cardboard box with foam inserts to prevent damage during shipping.
- The box is labeled with the product name, model number, and quantity.
- Inside the box, the product is wrapped in plastic to protect it from moisture and dust.
Shipping:
- The ASCO Solenoid Valve product is shipped via a reliable courier service.
- Shipping options include standard or expedited delivery.
- Customers receive a tracking number to monitor the status of their shipment.
- Shipping fees are calculated at checkout and may vary depending on the destination and shipping method selected.
